Original price was: ₨ 8,845.₨ 8,052Current price is: ₨ 8,052.
| Range | Mureva |
|---|---|

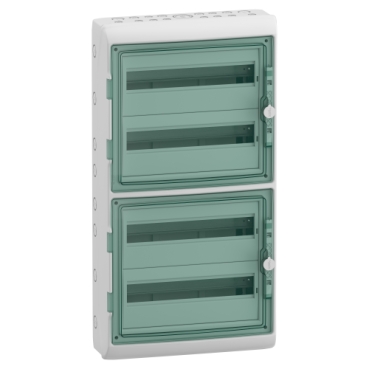

| Product name | Mureva Enclosure |
| Product or component type | Weatherproof enclosure |
| enclosure type | Enclosure for modular device |
| Mounting plate description | Slotted |
| Enclosure mounting | Surface |
|---|---|
| 9 mm pitches | 36 |
| Number of 18 mm modules per row | 18 |
| Total number of 18 mm modules | 72 |
| Number of horizontal rows | 4 |
| Electrical insulation class | Class II Double insulation |
| Provided equipment | 4 marking kit 4 wiring strap 2 terminal block 32 holes 2 terminal block support |
| Type of front cover | Transparent Reversible |
| Power dissipation in W | 89 W |
| [In] rated current | 160 A |
| Type of rail | DIN |
| Number of pre-cutouts PG ISO | 17 |
| Number of terminal blocks | 1 earth (screw connection) with 32 outgoers |
| Distribution block outgoers | 16 x 16 mm² + 16 x 10 mm² |
| Locking options description | Optional keylock |
| Enclosure material | Self-extinguishing polymer |
| Width | 448 mm |
| Height | 842 mm |
| Depth | 160 mm |
| Internal depth | 88 mm |
| Colour | Door: transparent green Enclosure: light grey (RAL 7035) |
| Standards | IEC 60670-1 IEC 60670-24 EN 50262 IEC 60695-2-1 |
|---|---|
| Fire resistance | 650 °C conforming to IEC 60695-2-1 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK09 conforming to EN 50102 |
| Environmental characteristics (UV) | UV resistant: class 3 conforming to ISO 4582:2010 Ultraviolet degradation test conforming to ISO 4892-2:2013 |
| Overvoltage category | II |
| Ambient air temperature for operation | -25…60 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 17.000 cm |
| Package 1 Width | 47.000 cm |
| Package 1 Length | 85.000 cm |
| Package 1 Weight | 7.530 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 11 |
| Package 2 Height | 80.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 94.830 kg |
| Country of origin | IT |
|---|
| Warranty (in months) | 18 |
|---|
