Original price was: ₨ 2,500.₨ 2,325Current price is: ₨ 2,325.
| Range | Acti9 |
|---|---|

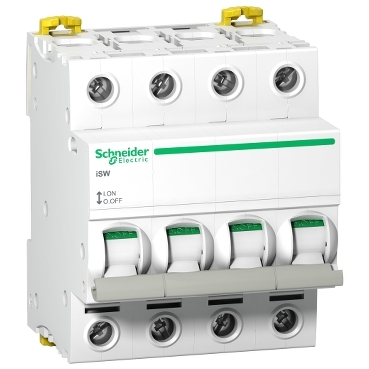

| Product Name | Acti9 iSW |
| Type of product or equipment | Switch-disconnector |
| Device Name | iSW |
| Device App | Insulation Control |
| Description of the poles | 4P |
| Job Category | AC-22A |
| Sectionability | Yes |
| [I]n assigned current of employment | 63 A at 415 V AC 50/60 Hz |
|---|---|
| [EU] Rated Employment Voltage | 415 V AC 50/60 Hz |
| [Icm] Assigned Short-Circuit Closing Power | 5 kA disconnect switch only |
| [ICW] short-duration rated current | 1260 A |
| [UI] Rated Insulation Voltage | 500 V AC 50/60 Hz |
| [Uimp] Rated Shock Resistance Tension | 6 kV |
| Order Type | By crankpin pin |
| Local signage | Indication ON/OFF |
| Fully visible cut-off | Yes |
| Installation Mode | Fixed |
| Mounting bracket | Rail DIN |
| Splitter, comb, busbar compatibility | Top or bottom: YES |
| 9 mm pitch | 8 |
| Height | 85 mm |
| Width | 72 mm |
| Depth | 73 mm |
| Color | White |
| Mechanical life | 20000 cycle |
| Electrical life | 15000 cycle |
| Connection mode | Cage type terminal (top or bottom) – <= 1 x 50 mm² – rigid Cage type terminal (top or bottom) – <= 1 x 35 mm² – flexible Cage type terminal (top or bottom) – <= 1 x 35 mm² – flexible with end cap |
| Wire stripping length | 14 mm |
| Tightening torque | 3.5 N.m |
| Standards | IEC 60947-3 EN 60947-3 |
|---|---|
| IP protection level | IP20 |
| Degree of pollution | 3 |
| Tropicalization | 2 |
| Relative humidity | 95% at 55°C |
| Operating ambient air temperature | -25… 60 °C |
| Ambient air temperature for storage | -40… 85 °C |
| Packaging Type 1 | PCE |
|---|---|
| Number of units per pack | 1 |
| Package Height 1 | 7,500 cm |
| Package Width 1 | 7,000 cm |
| Package Length 1 | 9,000 cm |
| Package Weight (Kg) | 335,000 g |
| Packaging Type 2 | BB1 |
| No. of products in 2 packaging | 3 |
| Package Height 2 | 8,000 cm |
| Package Width 2 | 9,500 cm |
| Package Length 2 | 22,000 cm |
| Package Weight 2 | 1,045 kg |
| Packaging Type 3 | S03 |
| No. of products in 3 packaging | 33 |
| Package Height 3 | 30,000 cm |
| Package Width 3 | 30,000 cm |
| Longueur de l’emballage 3 | 40,000 cm |
| Poids de l’emballage 3 | 12,050 kg |
| Garantie (en mois) | 18 |
|---|
